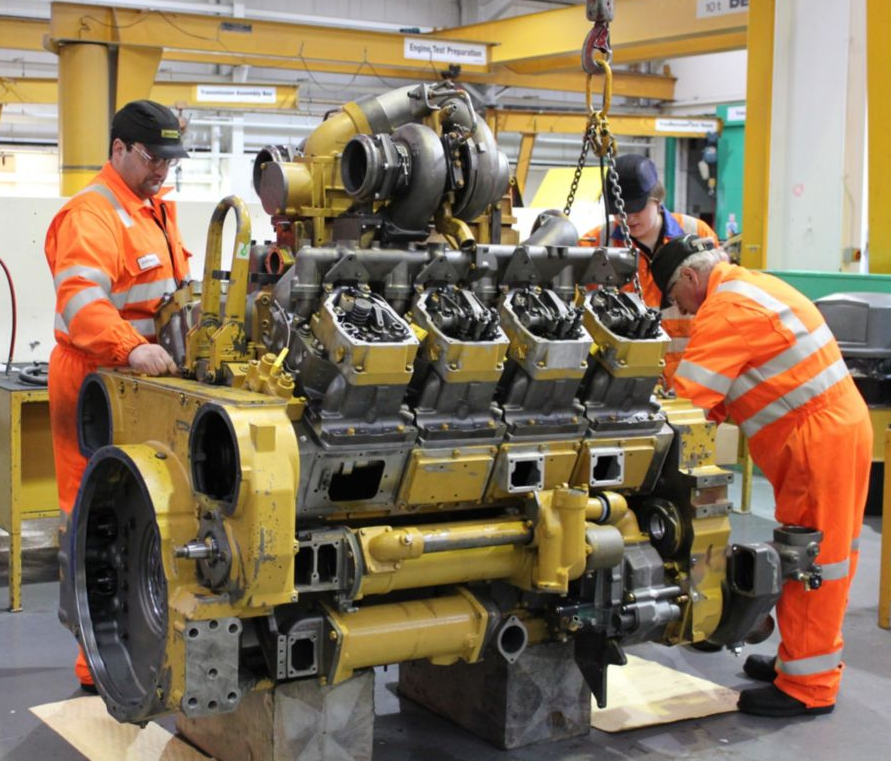

IE0805 : CAT 3500 Electronic Engine Diagnostic

This practical and highly-interactive course includes real-life case studies where participants will be engaged in a series of interactive small groups and class workshops.



This course is designed to provide participants with a detailed and up-to-date overview of CAT 3500 Electronic Engine Diagnostic. It covers the CAT 3500 engine series, basics of electronic engine management and electronic control module (ECM) architecture; the engine sensor, engine actuator and diagnostic tools; the CAT ET installation, configuration, monitoring engine parameters and event and fault code management; and the snapshot, data logging, engine configuration, parameters and troubleshooting workflow.



Further, the course will also discuss the sensor signal theory, testing engine sensors, wiring harness and connector inspection; the electrical schematic interpretation, power supply, ground diagnostics and intermittent fault troubleshooting; the electronic fuel injection system, injector diagnostics, engine timing and speed control; the air and exhaust system interaction, engine protection and derate strategies; the performance complaint diagnostics covering low power troubleshooting, excessive fuel consumption, rough running, misfire, black smoke and exhaust issues.


During this interactive course, participants will learn the advanced ECM diagnostics, communication network diagnostics and cold start and shutdown issues; and the advanced troubleshooting techniques covering root cause analysis, fault replication methods, eliminating multiple fault interactions and documentation of diagnostic findings.
